VEBKO AMT105 - Relay Tester

Comprehensive Relay Test and Protection Equipment

• Relay comprehensive tester and AMT105 equipment

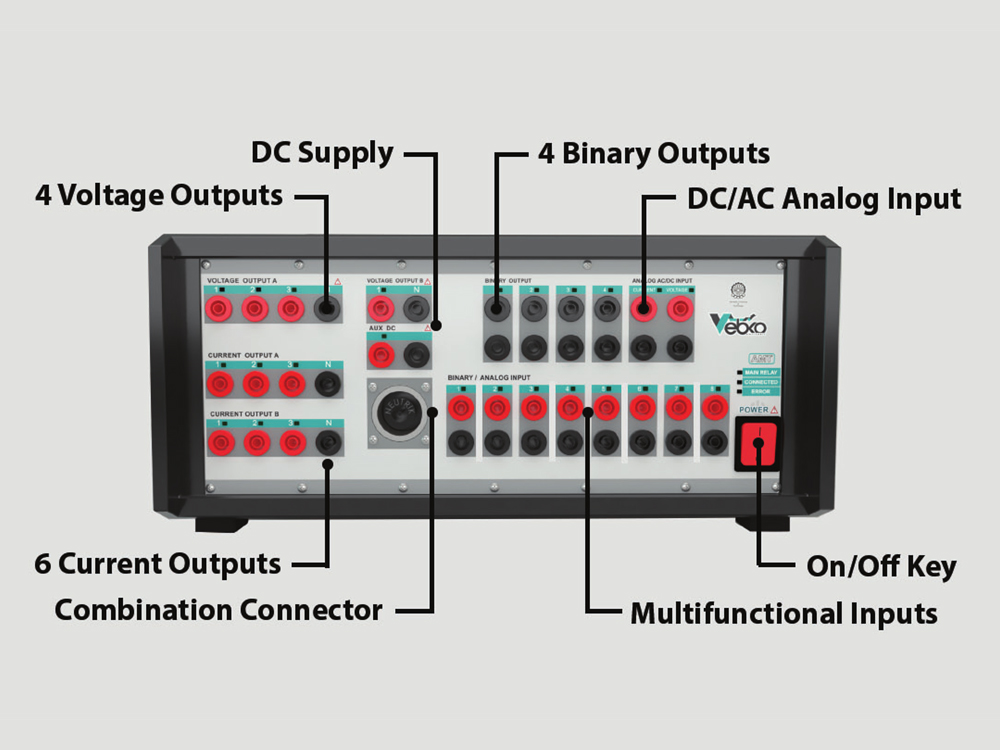

• Four 150 voltage outputs capable of applying 450V single phase
• Six outputs up to 32 amps and 60 phase and 64 amp three-phase and 128 single-phase amps

Software Specifications

• Capable of testing a wide range of electromechanical, static, and numerical relays
• Capable of reading, editing, and creating all XRio and Rio files
• Capable of transient testing
• Capable of point-to-point or end-to-end testing
• Built-in GPS and Wi-Fi
• Automatically performing tests
• Generating a comprehensive reports on tests
• Capable of automatically filling out the test sheets of different companies
• Compatible with Windows XP, 7, 8, 10
• Supports Android and iOS operating systems
• Autosave, Redo and Undo options
• PDF Help File in English
• Using Bootloader technology to update Firmware
• A host of instructional videos

Testing Circuit Breakers(CB) and Isolators

• Timing Test
• Contact Resistance
• Minimum Voltage to Operate Circuit Breaker

Testing transducers and meters

• Highly precise in testing transducers and meters
• Equipped with a pulse counter to automatically read energy

Testing Voltage Transformers and Capacitor Voltage Transformers(VT/CVT)

• Secondary Burden
• Short-Circuit Impedance
• Resistance
• Excitation
• Ratio

Testing Voltage Power Transformers

• Winding resistance
• Ratio (TTR)
• No-Load Current
• Vector group
• Magnetic balance
• Tap changer continuity
• Demagnetizing

Capable of Testing Current Transformers(CT)

• Excitation (Saturation)
• Hysteresis curve
• Ratio using current or voltage
• Polarity using current or voltage
• Phase error
• Winding resistance
• Secondary burden

Testing Circuit Breakers(CB) and Isolators

• Testing the opening and closing time
• Contact resistance measurement
• Minimum power voltage

Testing Cable Resistance

Testing RTD
