The Vector Group Test of a transformer is one of the most important tests performed during transformer manufacturing or maintenance. It helps in identifying the phase difference, connection type, and polarity of transformer windings.
This test ensures proper parallel operation, load sharing, and system stability in electrical networks.
Importance of Vector Group Test
The Vector Group Test plays a crucial role in ensuring transformer compatibility and reliable performance.
Key Importance:
-
Ensures correct phase displacement between primary and secondary windings.
-
Helps in determining the type of winding connection (Star, Delta, Zig-Zag, etc.).
-
Assures safe parallel operation of transformers.
-
Prevents circulating currents due to phase difference mismatch.
-
Helps in system fault analysis and troubleshooting.
Purpose of Vector Group Test
The main purpose of the Vector Group Test is to verify the vector relationship between primary and secondary windings.
It confirms whether the transformer will operate correctly when connected to other transformers in parallel or in a three-phase system.
Additional Purposes:
-
Identify connection configuration (e.g., Dyn11, Yyn0, etc.).
-
Detect incorrect winding polarity.
-
Prevent operational phase mismatch before energization.
What Does the Vector Group Test Include?
The Vector Group Test includes checking both winding polarity and phase displacement angle.
The test determines how the secondary voltage is displaced with respect to the primary voltage.
The test includes:
-
Connection verification (Star, Delta, Zig-Zag)
-
Measurement of phase angle difference
-
Identification of clock notation (like Dyn11 or Yyn0)
-
Confirmation of correct vector relationship
Why is the Vector Group Test Needed?
The Vector Group Test is needed to ensure transformers can be operated safely and efficiently under load conditions.
Reasons for Conducting the Test:
-
To ensure parallel operation compatibility
-
To prevent faults and phase mismatch
-
To maintain system reliability and synchronization
-
To verify manufacturer specifications before installation

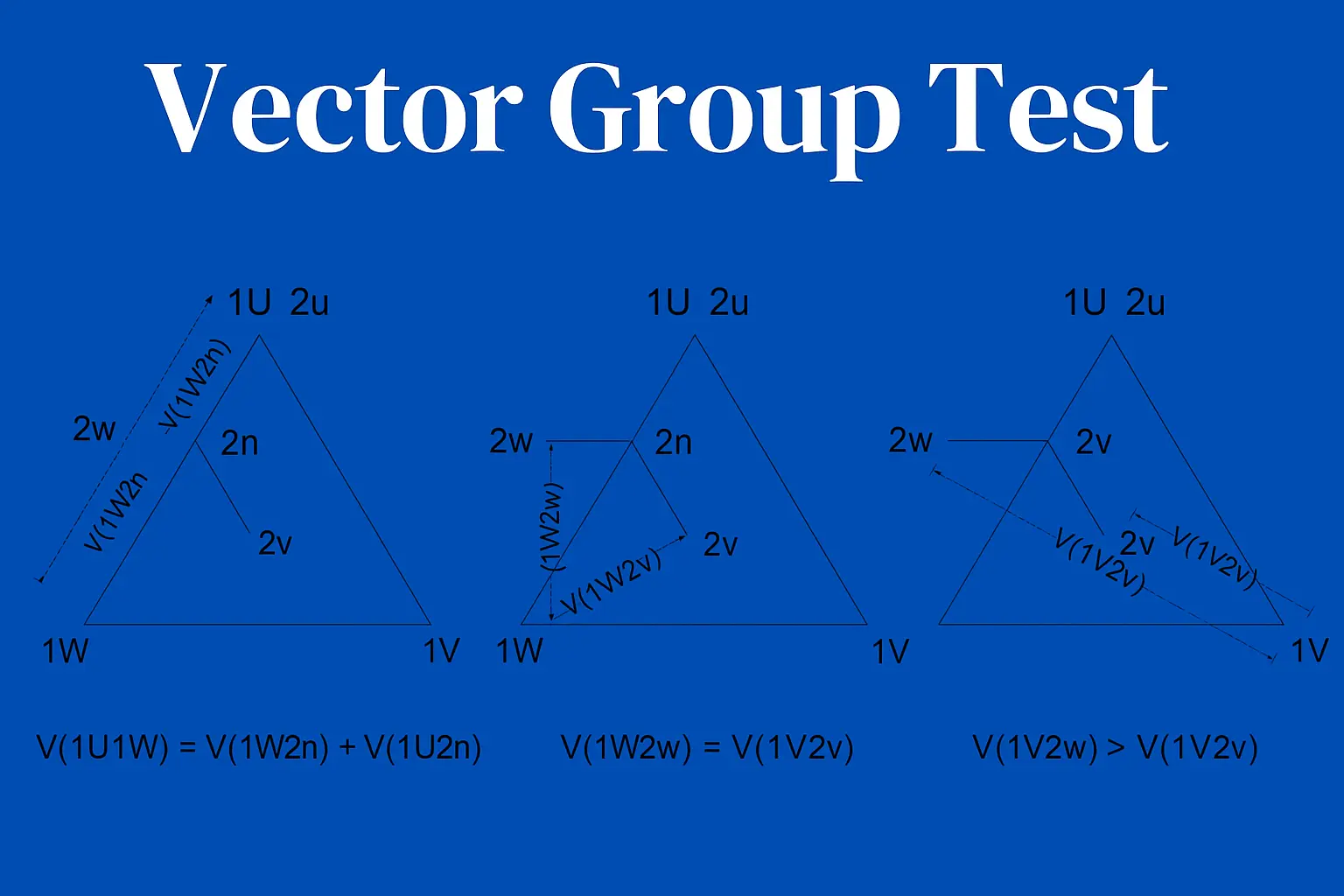

Process of Vector Group Test
The process of performing the Vector Group Test involves specific steps that confirm the phase relationship between primary and secondary windings.
Step-by-Step Process:
-
Apply a balanced three-phase voltage to the primary winding.
-
Measure phase voltages and record readings for all windings.
-
Connect voltmeters across selected terminals as per standard connection (e.g., V1-U2, V2-V2, etc.).
-
Observe polarity and voltage differences to determine the phase displacement.
-
Compare the measured results with the standard clock notation vector group (e.g., Dyn11, Yyn0, etc.).
Main Equipment Used in Vector Group Test
To perform the Vector Group Test accurately, the following equipment is used:
Equipment List:
-
Auto Transformer or Variable Voltage Source
-
Voltmeter (Digital or Analog)
-
Connection Wires and Test Leads
-
Multimeter (for confirmation)
-
Phase Angle Meter (optional for advanced analysis)
Final Result
After completing the Vector Group Test, the transformer’s vector group classification is confirmed (e.g., Dyn11, Yyn0, Dd0, etc.).
The result ensures the transformer’s phase displacement and winding connections are correct, allowing safe parallel operation and network integration.
Advantages of Vector Group Test
Performing this test provides several operational and safety advantages.
Key Benefits:
-
Prevents phase errors and short circuits.
-
Confirms proper system synchronization.
-
Ensures transformer compatibility in multi-transformer systems.
-
Aids in fault detection and isolation.
-
Improves system reliability and efficiency.
Summary
The Vector Group Test of Transformer is a vital quality and commissioning test that defines the transformer’s winding configuration and phase displacement.
It ensures parallel operation safety, reduces fault risk, and enhances overall system reliability.
Before energizing any transformer, performing this test is mandatory to confirm correct vector grouping as per the manufacturer’s specification.
