In transformer testing, the Polarity and Phase Relation Test is a crucial diagnostic test that ensures the correct connection and operation of transformers. It helps determine whether transformer terminals are properly aligned to maintain the correct phase relationship during parallel operations or system connections.
Importance of Polarity and Phase Relation Test
Why This Test Matters
The Polarity and Phase Relation Test is important for:
-
Ensuring correct parallel operation of transformers.
-
Preventing short circuits due to wrong terminal connections.
-
Maintaining system stability and reliability.
-
Assuring correct voltage vector relationship between primary and secondary windings.
Incorrect polarity or phase relation can lead to serious equipment damage, unsafe operations, and incorrect load sharing between transformers.
Purpose of Polarity and Phase Relation Test
Objective of the Test
The main purpose of this test is to determine whether the primary and secondary windings of a transformer are connected in additive or subtractive polarity.
It also helps verify the phase displacement between high voltage (HV) and low voltage (LV) windings.
What Does the Polarity and Phase Relation Test Include?
Key Aspects Covered
-
Identification of transformer terminal markings (H1, H2, X1, X2, etc.).
-
Determination of instantaneous voltage direction between HV and LV sides.
-
Verification of additive or subtractive connection type.
-
Confirmation of phase sequence and displacement (important for three-phase transformers).
Why is the Polarity and Phase Relation Test Needed?
Technical and Safety Reasons
This test is needed to:
-
Prevent wrong transformer paralleling.
-
Maintain correct vector grouping in three-phase systems.
-
Ensure accurate voltage transformation ratios.
-
Avoid reverse connections that can cause dangerous voltage differences.
By confirming polarity, engineers can safely connect transformers in parallel or series, ensuring proper phase alignment and voltage matching.
Process of Polarity and Phase Relation Test
Step-by-Step Procedure
1. Preparation
-
Ensure transformer is isolated from power supply.
-
Identify terminals on both HV and LV sides.
-
Connect voltmeter or multimeter as per test setup.

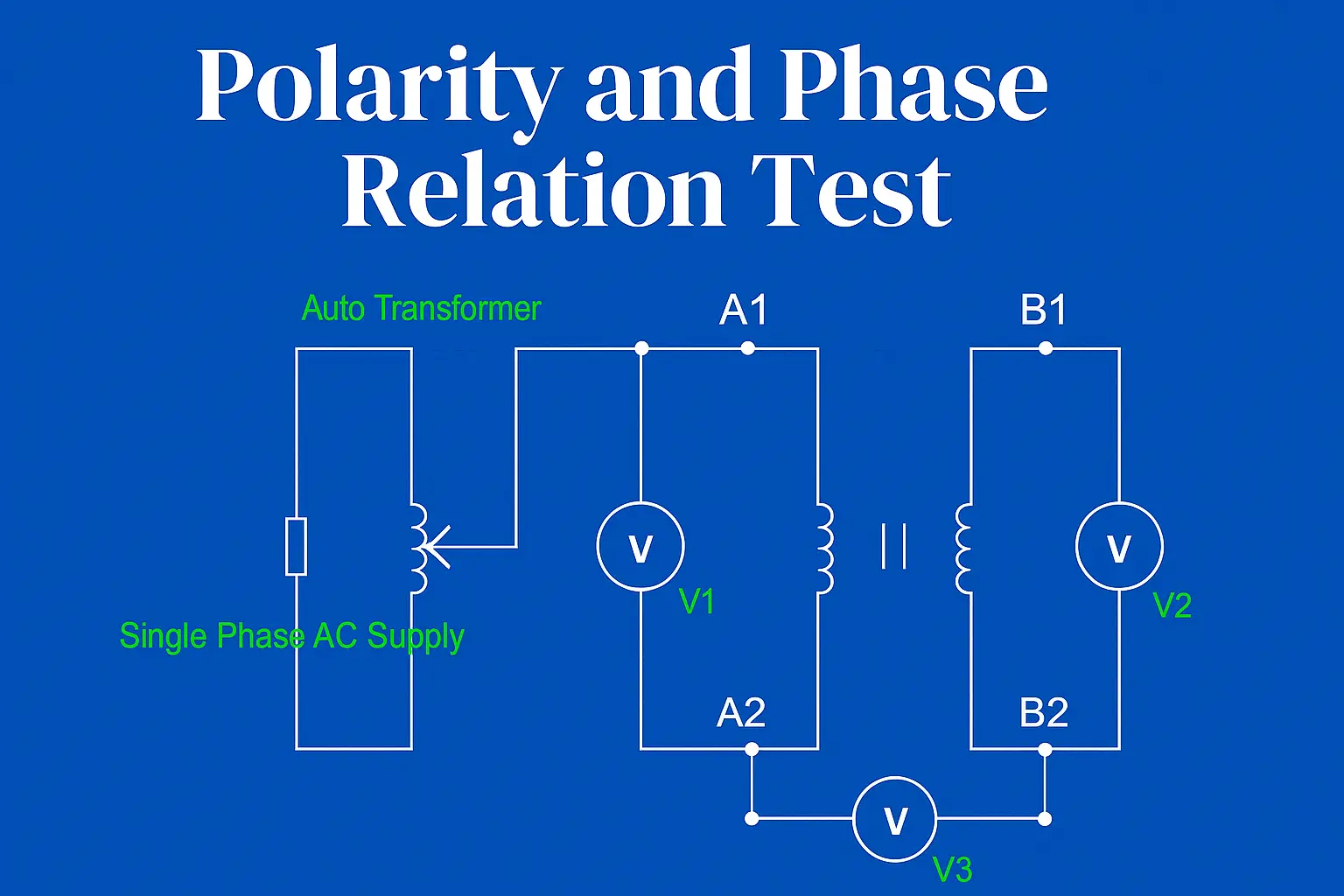

2. Applying Voltage
-
Apply a low AC voltage (usually 230V or 400V) to the HV side.
-
Observe the induced voltage on the LV side.
3. Reading Results
-
Connect voltmeter between the primary and secondary winding leads (H1–X1 and H2–X2).
-
Measure and compare voltage readings to determine the polarity type:
| Polarity Type | Observation | Description |
|---|---|---|
| Additive Polarity | Voltage increases | Voltages aid each other |
| Subtractive Polarity | Voltage decreases | Voltages oppose each other |
Main Equipment Used in Polarity and Phase Relation Test
Testing Tools
-
Auto Transformer or AC Supply Source
-
Voltmeter or Digital Multimeter
-
Connecting Leads and Probes
-
Protective Relays and Fuses (for safety)
Final Result
Interpreting the Test Outcome
If the measured voltage between terminals (H1 and X1) is higher than the applied voltage, it indicates additive polarity.
If it is lower, it indicates subtractive polarity.
For three-phase transformers, phase relation tests confirm the vector group and ensure that the phase shift between primary and secondary sides is correct.
Advantages of Polarity and Phase Relation Test
Key Benefits
-
Ensures safe parallel operation of transformers.
-
Prevents damage due to incorrect polarity.
-
Helps in maintaining system synchronization.
-
Ensures accurate phase alignment between circuits.
-
Confirms transformer vector group consistency.
Summary
The Polarity and Phase Relation Test is an essential step in transformer commissioning and maintenance. It ensures correct connections, verifies phase alignment, and prevents operational issues in multi-transformer systems.
By performing this test accurately, engineers maintain safety, efficiency, and long-term reliability of the power system.
Conclusion
Ensuring Reliable Transformer Performance
Accurate polarity and phase testing help in preventing costly system failures. Regular testing, especially during installation or maintenance, guarantees that your transformer operates efficiently and safely within the network.
