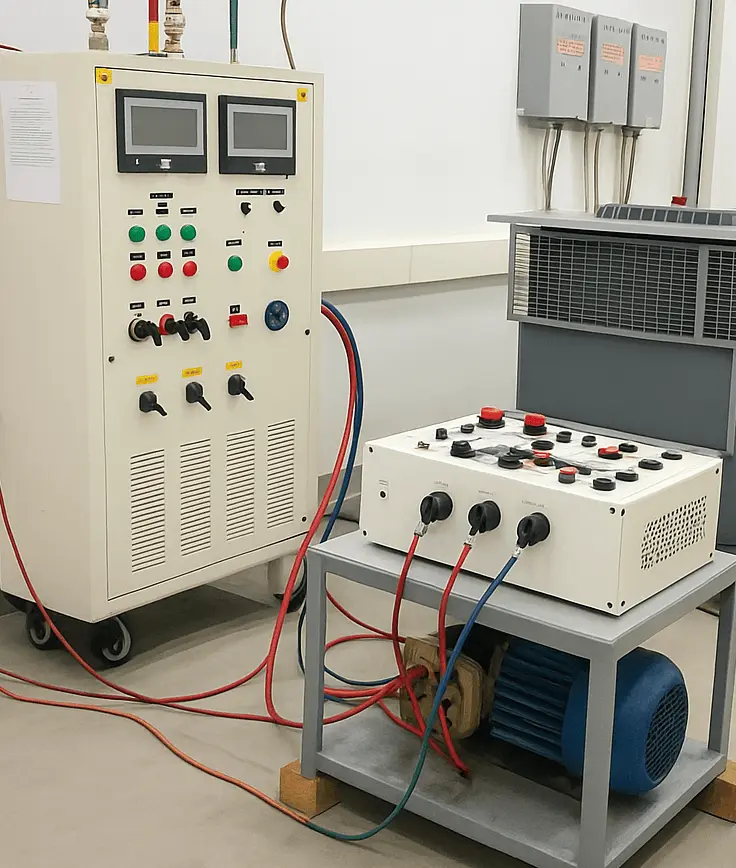

Importance of Load and Temperature Rise Test
The Load and Temperature Rise Test is a crucial electrical test performed to determine how a transformer or electrical equipment behaves under actual working conditions. This test helps in identifying the thermal performance and efficiency of the equipment when subjected to rated load conditions. It ensures that the transformer operates safely without overheating, preventing insulation failure and increasing overall lifespan.
Purpose of Load and Temperature Rise Test
The main purpose of conducting this test is to check the temperature rise of winding and oil when the equipment is operating at full load. It validates the thermal design and confirms that the equipment can handle rated currents without exceeding permissible temperature limits as per IEC and IS standards.
What Does the Load and Temperature Rise Test Include?
Key Parameters Checked
-
Temperature rise of oil (top and bottom)
-
Winding temperature rise (using resistance method)
-
Ambient temperature
-
Cooling performance of the equipment
Test Duration
The test is typically conducted for several hours until a steady-state temperature is achieved, ensuring accurate measurement of the temperature rise.
Why is the Load and Temperature Rise Test Needed?
This test is essential for ensuring reliability, efficiency, and safety. When electrical equipment operates under load, heat is generated due to copper and iron losses. Excessive heat can damage insulation and reduce the transformer’s efficiency. By performing this test, manufacturers can verify that temperature rise remains within standard limits, ensuring long-term stability and safe operation.
Process of Load and Temperature Rise Test
Step-by-Step Procedure
-
Preparation: Connect the transformer to a suitable loading bank. Ensure proper oil level and cooling arrangement.
-
Apply Load: Apply the rated load gradually to simulate actual working conditions.
-
Monitor Temperature: Continuously record the top oil temperature, winding temperature, and ambient temperature.
-
Steady State Achievement: Continue until temperature readings stabilize for about 3 consecutive hours.
-
Calculate Temperature Rise: Measure the final resistance of windings and calculate temperature rise using the resistance method.
-
Compare with Standard Limits: Verify results as per IEC 60076 or IS 2026 standards.
Main Equipment Used in Load and Temperature Rise Test
Essential Testing Instruments
-
Loading Transformer / Resistive Load Bank
-
Thermometers and Temperature Sensors
-
Resistance Measurement Device
-
Oil Temperature Indicator
-
Data Logger for Continuous Recording
Final Result Interpretation
After completion, the test report includes values of temperature rise in oil and winding, ambient temperature, and final test duration. If the observed temperature rise is within permissible limits, the transformer passes the test. Otherwise, the design or cooling system requires modification.
Advantages of Load and Temperature Rise Test
Key Benefits
-
Ensures transformer durability and reliability
-
Confirms design efficiency and safety
-
Prevents overheating and insulation failure
-
Validates manufacturer’s quality standards
-
Builds trust with clients and certification bodies
Summary
The Load and Temperature Rise Test is one of the most important quality assurance steps in transformer manufacturing. It measures how efficiently a transformer manages heat under real operating conditions, ensuring performance stability, safety, and compliance with international standards.
Conclusion
In conclusion, the Load and Temperature Rise Test plays a vital role in assessing the operational reliability of transformers. It confirms that the equipment can perform safely at full load without exceeding thermal limits. For manufacturers and testing engineers, this test is not just a compliance requirement but a benchmark of product excellence.
