Insulation Resistance Testing is a crucial process in electrical maintenance and safety. It ensures that the insulation around wires, cables, and electrical components is strong enough to prevent current leakage, short circuits, and potential electrical hazards. Regular testing helps identify early signs of insulation breakdown and ensures reliable operation of electrical equipment.
Purpose of Insulation Resistance Testing
The main purpose of the Insulation Resistance Test is to measure the effectiveness of insulation materials used in electrical systems. It helps to:
-
Detect any deterioration in insulation.
-
Prevent electric shock hazards.
-
Avoid equipment failures.
-
Maintain system reliability and efficiency.
What Does Insu lation Resistance Testing Do?
Insulation Resistance Testing measures how well the insulation can resist the flow of electric current. It identifies whether there is any leakage current through the insulation when a high DC voltage is applied. The higher the resistance value, the better the insulation quality.
Common Tests in Insulation Resistance Measurement
1. Spot Reading Test
This is a quick check of insulation condition taken after one minute of applying test voltage.
2. Step Voltage Test
This test involves applying increasing voltage levels to determine the insulation's strength at different voltages.
3. Time Resistance Test (Dielectric Absorption Test)
This test measures insulation resistance over a fixed period, typically 1, 2, and 10 minutes, to detect moisture or contamination.
4. Polarization Index (PI) Test
This test is the ratio of the 10-minute to 1-minute insulation resistance value. It helps evaluate insulation aging and quality.
Why is Insulation Resistance Testing Needed?
Insulation Resistance Testing is essential because insulation weakens over time due to:
-
Heat and aging
-
Moisture and humidity
-
Dust and contamination
-
Mechanical stress or vibrations
Testing ensures electrical safety, reduces downtime, and prevents costly damage or accidents caused by insulation failure.
Process of Insulation Resistance Testing
Step 1: Preparation
Disconnect the equipment from power and discharge all stored energy.
Step 2: Connection
Connect the test leads of the insulation resistance tester (Megger) — one to the conductor and the other to the ground or other conductors.
Step 3: Apply Test Voltage
Apply a suitable DC voltage (commonly 500V, 1000V, or as per equipment rating).
Step 4: Measure Resistance
Read the insulation resistance value displayed on the tester.
Step 5: Record and Analyze
Compare the results with standard acceptable values to determine insulation health.
Main Equipment Used in Insulation Resistance Testing

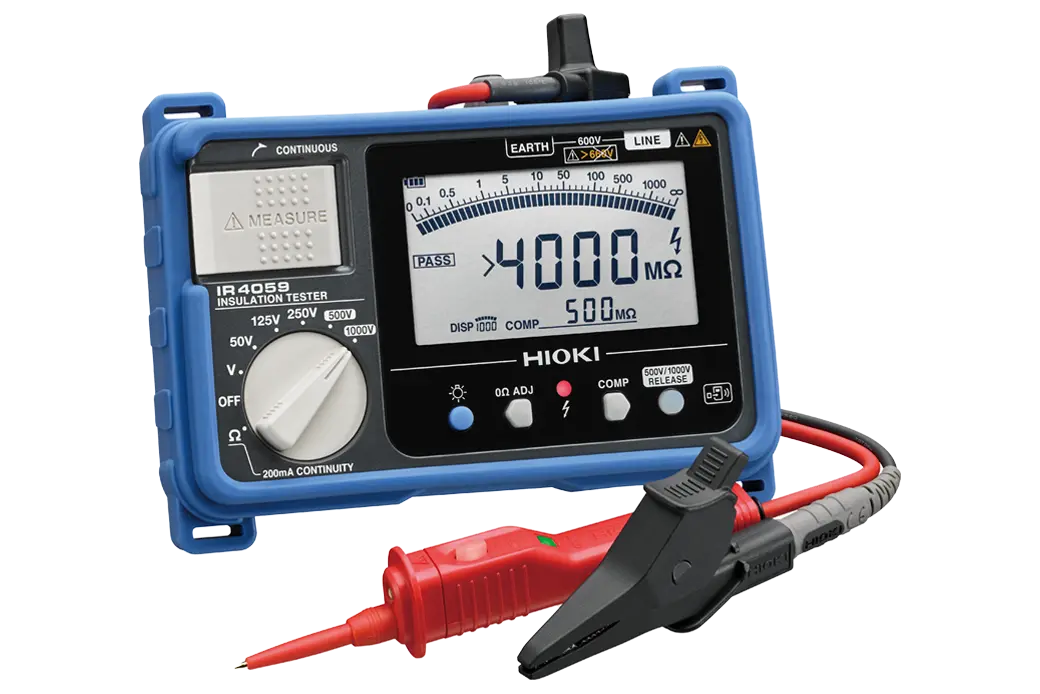

1. Megger (Insulation Resistance Tester)
The most widely used device for testing insulation resistance.
2. Test Leads and Clips
Used to connect the tester to the equipment safely.
3. Voltage Source
Provides the required test voltage for insulation assessment.
Final Result Interpretation
-
Above 100 MΩ → Excellent insulation
-
10–100 MΩ → Acceptable but should be monitored
-
Below 10 MΩ → Poor insulation; requires immediate action
Advantages of Insulation Resistance Testing
-
Prevents electrical accidents and equipment damage
-
Extends the lifespan of machines and cables
-
Ensures compliance with safety standards
-
Detects insulation deterioration early
-
Improves overall system reliability
Summary
Insulation Resistance Testing plays a vital role in ensuring the safety and reliability of electrical installations. Conducting this test regularly helps identify potential insulation failures before they lead to costly downtime or accidents. Always ensure proper testing procedures, accurate equipment, and periodic maintenance for the best results.
Ensure Safety. Maintain Reliability. Protect Your Equipment.
